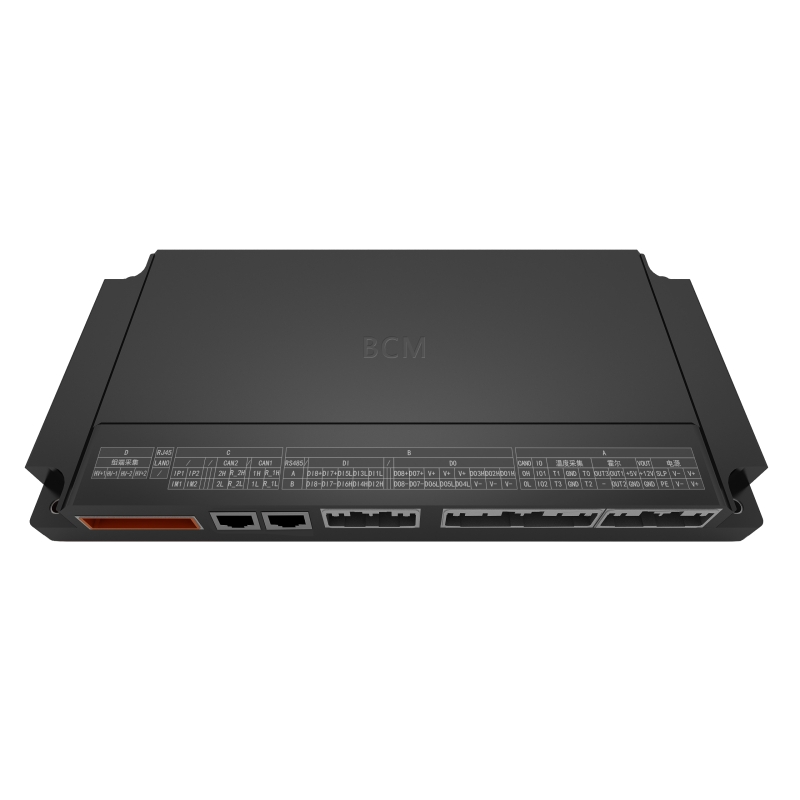

The ESBCM-F133 (Version 5.1.0) is an advanced Rack-level BMS module engineered specifically for 1500Vdc Energy Storage Systems. This module delivers exceptional battery analytics by supporting comprehensive SOC, SOH, SOE, and SOP estimation for both individual cells and the entire battery pack. Designed with rigorous safety in mind, it fully complies with GB/T34131, EN/IEC/UL60950, EN/IEC/UL62368, EN/IEC/UL60730, GBT36276, and IEC62477 for functional safety and electrical insulation requirements.
Optimized for large-capacity, grid-connected battery plants.
Delivers intelligent energy routing and system protection.
Uninterruptible monitoring for telecommunications and data centers.
Smooths power delivery for solar and wind integrations.
| Function | Item | Minimum | Typical value | Maximum | Unit | Remark | |
|---|---|---|---|---|---|---|---|
| ESBCM-F133 | ESBCM-F133-L | ||||||
| Operation power supply |
Rated voltage | 9 | 12/24 | 32 | Vdc | No external load at DO | |
| Rated power | - | - | 2.4 | W | |||
| Dormancy rated power |
- | - | 0.1 | W | |||
| Group terminal voltage collection |
Number of collect channels |
0 | - | 2 | Channel | ||
| Collection scope | 0 | - | 1500 | Vdc | |||
| Acquisition precision | - | - | ±0.2%FS | - | |||
| NTC | Number of collect channels |
0 | - | 4 | Channel | ||
| Collection scope | -40 | - | 125 | °C | |||
| Acquisition precision | - | ±1°C | - | - | |||
| Current collection |
Number of collect channels |
0 | - | 3 | Channel | Shunt and Hall | |
| Collection scope | 0 | - | ±1000 | A | Sensor-related | ||
| Acquisition precision | - | ±0.2% | ±(0.5%FS+0.5%RD) | - | CAB500 | ||
| Insulation resistance |
Collection scope | 0 | - | 10 | MΩ | ||
| Acquisition precision | - | - | 15% | % | |||
| DO | Number of channels |
- | - | 8 | Channel | ||
| Output current | - | - | 1 | A | Peak current 5A | ||
| DI | Number of channels |
- | - | 8 | Channel | ||
| CAN | Number of channels |
- | 250 | 3 | Channel | ||
| LAN | Number of channels |
- | 10/100M | - | 1 | Channel | |
| Model | Rack voltage detection range | Rack voltage detection channel | Temperature collection | Current collection | Communication | 5V Output | 12 Output | DO | DI | Size (L/W/H) mm | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ESBCM-F133 | DC 0~1500V | 2 | 4 | 3*Hall sensor | 3*CAN/2*RS485 | 1 | 1 | 8 | 8 | 225/110/27 | |
| ESBCM-F133* | LAN/3*CAN/RS485 | With LAN |
* Full range of supply voltage: DC 9-32V.
The module supports comprehensive analytics, specifically estimating SOC (State of Charge), SOH (State of Health), SOE (State of Energy), and SOP (State of Power). Crucially, the SOC and SOH values can be accurately estimated for both individual cells and the overarching pack.
The dual-network port cascading function is designed to enable seamless communication between the main control and ESMU/ESCCU. Additionally, it facilitates communication directly between multiple main controls.
The module supports terminal current detection by utilizing a hall sensor, which allows for real-time isolation of current DAQ (Data Acquisition) and processing.
Yes, the battery system insulation detection function is highly configurable; it can be set on or off strictly according to your system configuration requirements.
