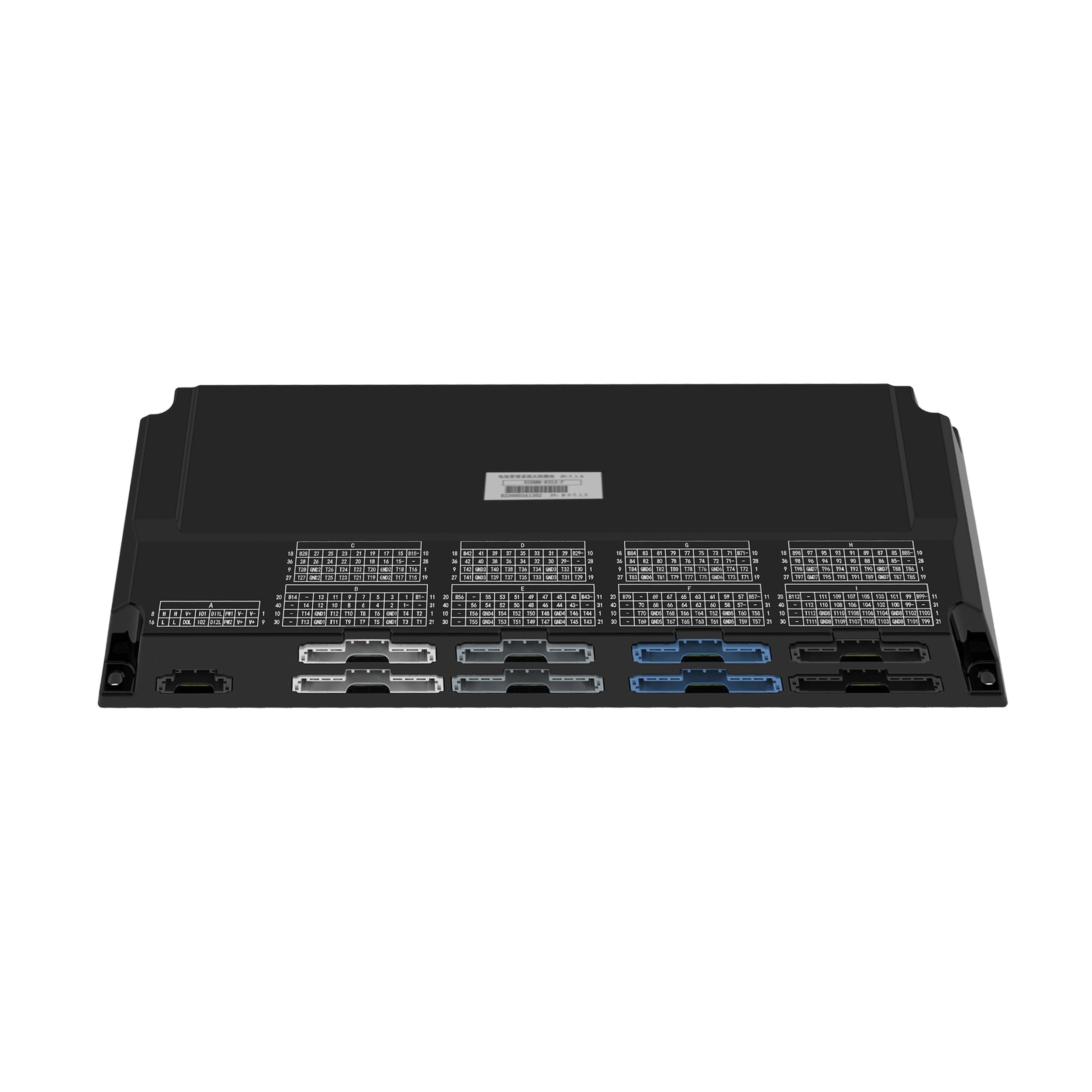

Delivering unparalleled high-density data acquisition with an ultra-low power footprint, this 1500Vdc-compliant BMS slave board redefines battery monitoring. It features 112 discrete channels for both cell voltage and NTC (10K) temperature tracking, ensuring no thermal blind spots. The module utilizes energy consumption balancing technology to discharge multiple cells simultaneously at 100mA, with measurable balanced energy for precise analytics. Supported by active thermal control logic and a remarkable 10uA low-power standby mode, it meets the most rigorous electrical insulation and safety requirements, including GBT36276 and EN/IEC/UL60730.
Suited for precise 112-point thermal tracking and active temperature control.
Ideal for racks utilizing 100mA passive balancing for multi-cell consistency.
Perfect for off-grid setups using the 10uA low-power mode to minimize battery drain.
Matched for dense installations demanding rigorous functional safety and insulation.
| Type | Model | Supply Voltage | Voltage Series | Voltage Range | Temp Sensors | Temp Range | Balancing Current | Communication |
|---|---|---|---|---|---|---|---|---|
| Level 1 Slave Passive Balancing |
ESBMM-1212-F HV6.0.0 | DC24V | 12 | 0-5V | 14 | -40~125°C | 100mA | CAN |
| ESBMM-2412-F HV7.0.1 | 24 | 24 | ||||||
| ESBMM-3612-F HV7.0.1 | 36 | 36 | ||||||
| ESBMM-4812-F HV7.0.1 | 48 | 48 | ||||||
| ESBMM-6012-F HV7.0.1 | 60 | 60 | ||||||
| ESBMM-1612-F HV7.0.7 | / | 16 | 16 | Daisy Chain | ||||
| ESBMM-3212-F HV7.0.7 | 32 | 32 | ||||||
| ESBMM-4812-F HV7.0.7 | 48 | 48 | ||||||
| ESBMM-6412-F HV7.0.7 | 64 | 64 | ||||||
| ESBMM-6412-F HV7.1.0 | DC24V | 64 | 64 | CAN | ||||
| ESBMM-B212-F HV7.1.0 | 112 | 112 | ||||||
| Level 1 Slave Active Balancing |
ESBMM-1222-F HV4.0.6 | DC24V | 12 | 0-5V | 14 | -40~125°C | 2A | CAN |
| ESBMM-1622-F HV4.0.6 | 16 | 16 | ||||||
| ESBMM-2422-F HV4.0.6 | 24 | 24 | ||||||
| ESBMM-2622-F HV4.0.0 | 26 | 26 | ||||||
| ESBMM-5222-F HV4.0.0 | 52 | 56 | ||||||
| ESBMM-A422-F HV5.0.0 | 104 | 104 |
The ESBMM-B212 implements a 100mA passive balance achieved through controlled discharging of multiple cells within the rack simultaneously. Crucially, the dissipated energy of each individual cell can be precisely measured for better system analytics.
It delivers exceptional high-density tracking by supporting simultaneous cell-level voltage monitoring for up to 112 cells. Furthermore, it integrates 112 dedicated NTC (10K) temperature monitoring points, ensuring precise, 1-to-1 thermal oversight for maximum system safety.
The module uniquely supports active thermal management by intelligently controlling cooling and temperature rise to extend overall battery life. Additionally, it features an ultra-low power DAQ mode that drastically reduces potential current to 10uA or lower, virtually eliminating parasitic battery drain during standby.
Absolutely. It is explicitly engineered to meet the strict requirements of 1500Vdc Energy Storage Systems. The module fully complies with major global functional safety and electrical insulation standards, including GB/T34131, EN/IEC/UL62368, and IEC62477.
