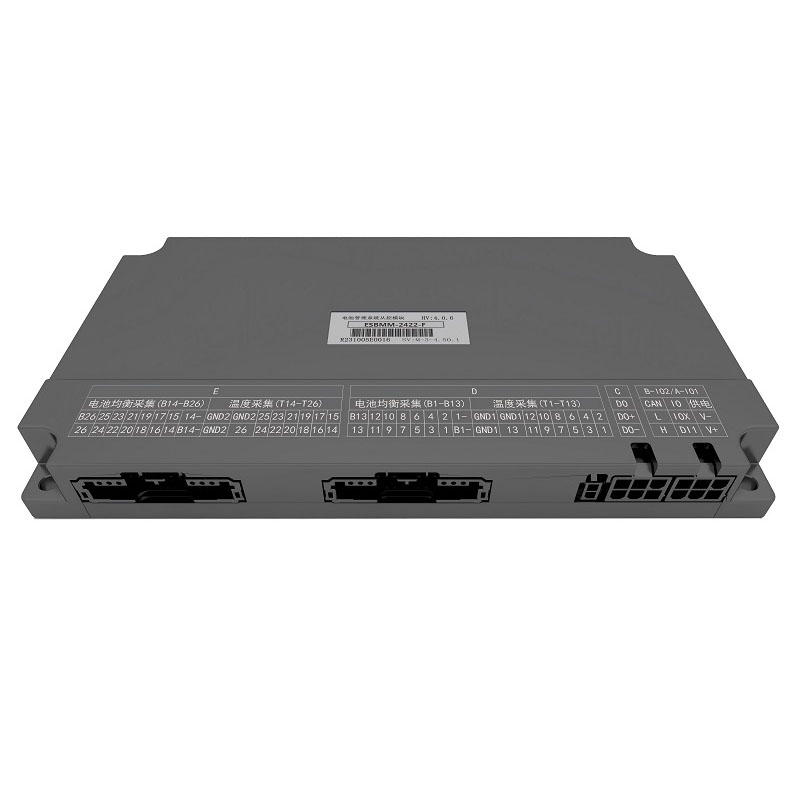

The ESBMM-2422 is a high-capacity active balancing BMS slave module engineered for complex 1500Vdc energy storage platforms. It offers extensive real-time monitoring with 24 cell-level voltage channels and 20 dedicated NTC (10K) temperature sensing points. Driven by a powerful 2A bi-directional any-cell-to-any-cell active balancing system, this module dynamically optimizes battery rack consistency. Equipped with comprehensive fault detection, active thermal management, and an ultra-low power DAQ mode (≤10uA), it ensures maximized system efficiency, extends battery life, and strictly complies with global safety standards including EN/IEC/UL62368 and GBT36276.
High-density 24-cell monitoring ideal for 1500Vdc utility storage.
Active 2A balancing ensures stability during heavy charge/discharge cycles.
Robust thermal management for high-demand fleet charging infrastructure.
Dense 20 NTC tracking prevents localized thermal runaway in containers.
| Type | Model | Supply Voltage | Voltage Series | Voltage Range | Temp Sensors | Temp Range | Balancing Current | Communication |
|---|---|---|---|---|---|---|---|---|
| Level 1 Slave Passive Balancing |
ESBMM-1212-F HV6.0.0 | DC24V | 12 | 0-5V | 14 | -40~125°C | 100mA | CAN |
| ESBMM-2412-F HV7.0.1 | 24 | 24 | ||||||
| ESBMM-3612-F HV7.0.1 | 36 | 36 | ||||||
| ESBMM-4812-F HV7.0.1 | 48 | 48 | ||||||
| ESBMM-6012-F HV7.0.1 | 60 | 60 | ||||||
| ESBMM-1612-F HV7.0.7 | / | 16 | 16 | Daisy Chain | ||||
| ESBMM-3212-F HV7.0.7 | 32 | 32 | ||||||
| ESBMM-4812-F HV7.0.7 | 48 | 48 | ||||||
| ESBMM-6412-F HV7.0.7 | 64 | 64 | ||||||
| ESBMM-6412-F HV7.1.0 | DC24V | 64 | 64 | CAN | ||||
| ESBMM-B212-F HV7.1.0 | 112 | 112 | ||||||
| Level 1 Slave Active Balancing |
ESBMM-1222-F HV4.0.6 | DC24V | 12 | 0-5V | 14 | -40~125°C | 2A | CAN |
| ESBMM-1622-F HV4.0.6 | 16 | 16 | ||||||
| ESBMM-2422-F HV4.0.6 | 24 | 24 | ||||||
| ESBMM-2622-F HV4.0.0 | 26 | 26 | ||||||
| ESBMM-5222-F HV4.0.0 | 52 | 56 | ||||||
| ESBMM-A422-F HV5.0.0 | 104 | 104 |
It combines high-density data acquisition, monitoring up to 24 individual cells alongside 20 temperature points, making it highly efficient for managing large battery clusters in complex 1500Vdc systems.
The module features bi-directional, any-cell-to-any-cell active balancing with a strong 2A current. This actively redistributes energy rather than burning it off, drastically improving rack consistency and operational lifespan.
It includes comprehensive, real-time safety monitoring, specifically supporting active balancing detection for cell over-voltage, under-voltage, over-current, under-current, and over-temperature scenarios.
Yes, it supports active thermal management. It can control cooling or temperature rise functions based on real-time data from its 20 NTC sensors to ensure optimal battery operating conditions and system safety.
